Brands that transform the future with performance

GIPL’s brands are driven by innovation, precision and excellence delivering high-performance solutions for modern infrastructure. With a focus on quality, durability and design our products have become synonymous with trust and industry leadership.

GEOROOF – World-class roofing solutions LUXCLAD – Luxury metal cladding sheets GEOCLAD – Premium metal cladding sheets GEOFENZ – Premium metal fences GEOFAB – Precision structurals TUFDEK – Superior quality decking sheets TUFFRAME GEO FASTENERS – Self-drilling screws GEOSTEEL – Experience centre STEEL HYPERMART

The backbone of
futuristic
infrastructures

Tufframe, the lightweight steel frames from GIPL, play a crucial role in modern construction by providing reliable structural support for walls, roofs and floors. It is available in three high-performance materials: GP, Galvalume and GIX. Tufframe offers exceptional strength and superior corrosion resistance, ensuring long-lasting durability for any project.

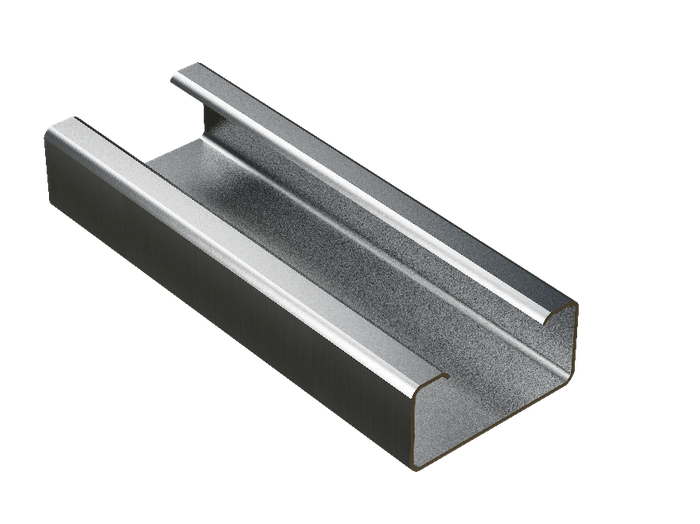

Tufframe lightweight steel frame close-up

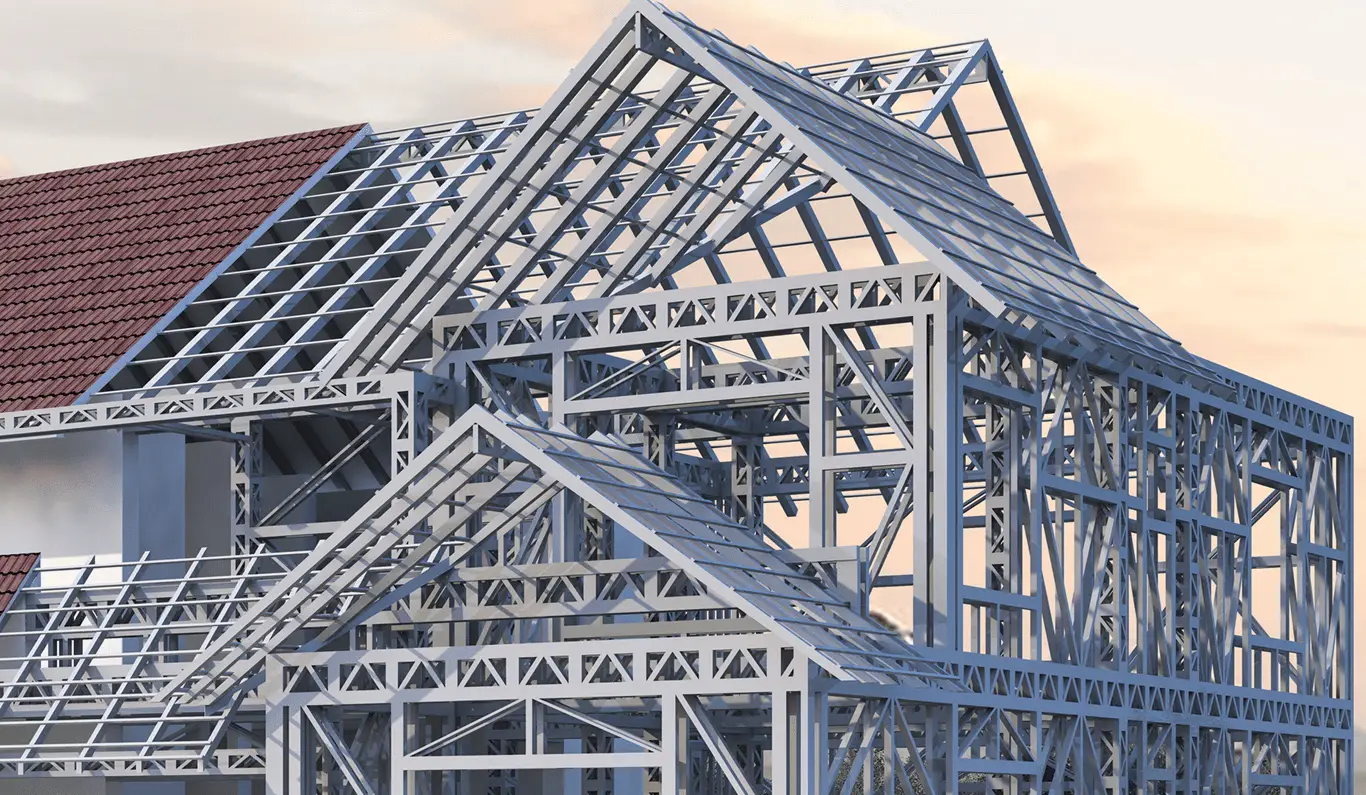

Tufframe steel frame structure on a construction site

Applications

  • Residential & Commercial Constructions
  • Dry Wall Systems
  • Solar Panel Supports

Profile Anatomy

  • A. Chamfer Cut
  • B. Dimple Punch
  • C. Lip Cut
  • D. Web Notch
  • E. Service Hole
  • F. Web Bolt Hole
  • G. Crimp

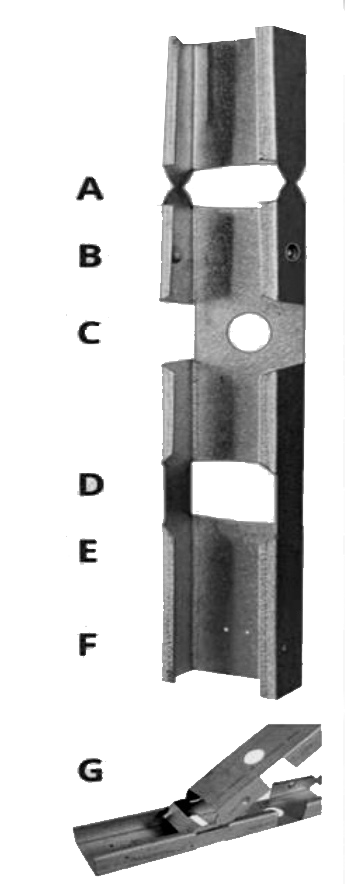

Tufframe steel channel profile showing chamfer cut, dimple punch, lip cut, web notch, service hole, web bolt hole and crimp

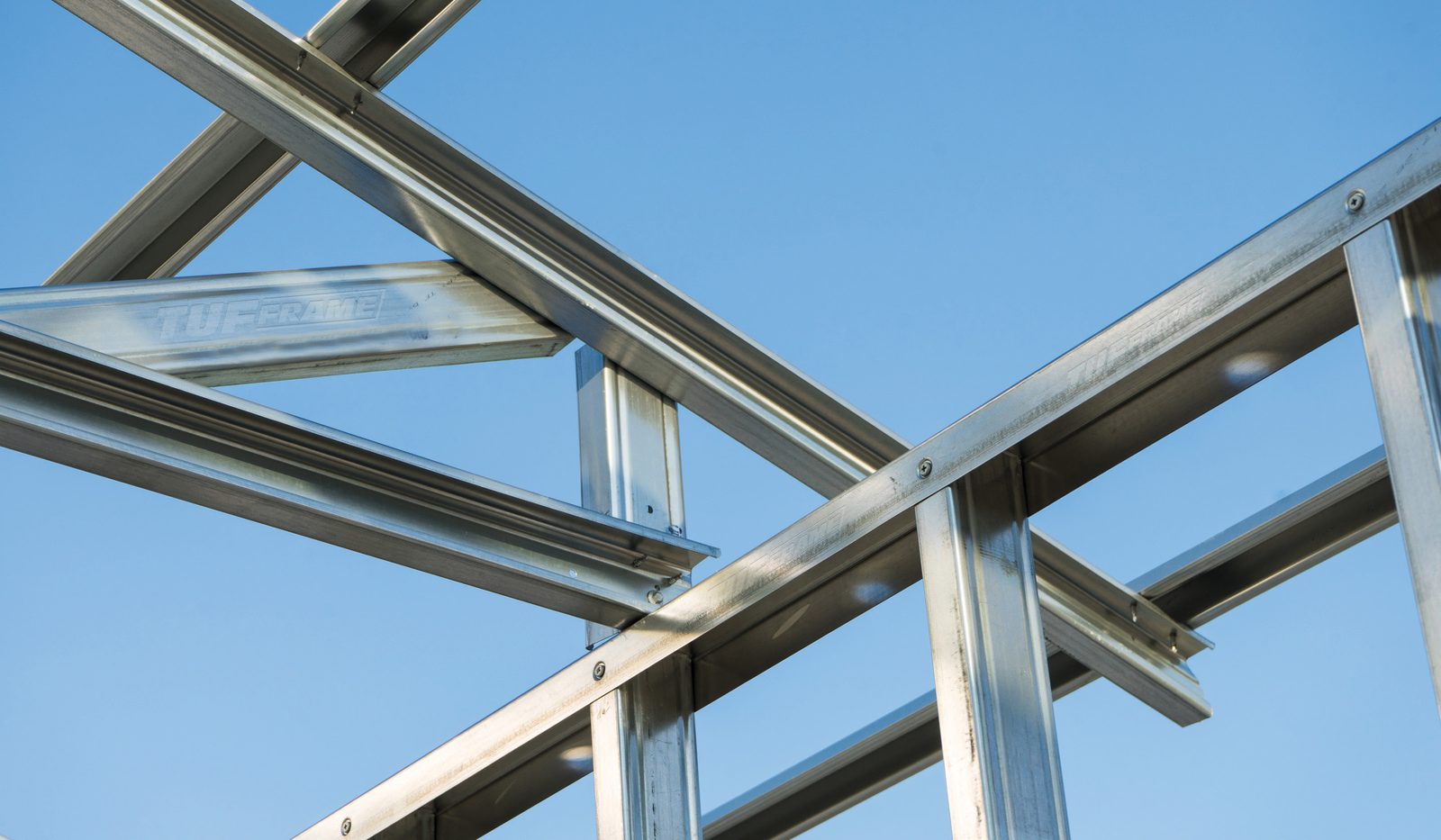

Tufframe steel frames used in interior partition wall construction

Advantages

Faster construction
Minimal pollution
Reusability
Recyclability
Minimum wastages
Eco-friendly material
Reduction in labour cost & time

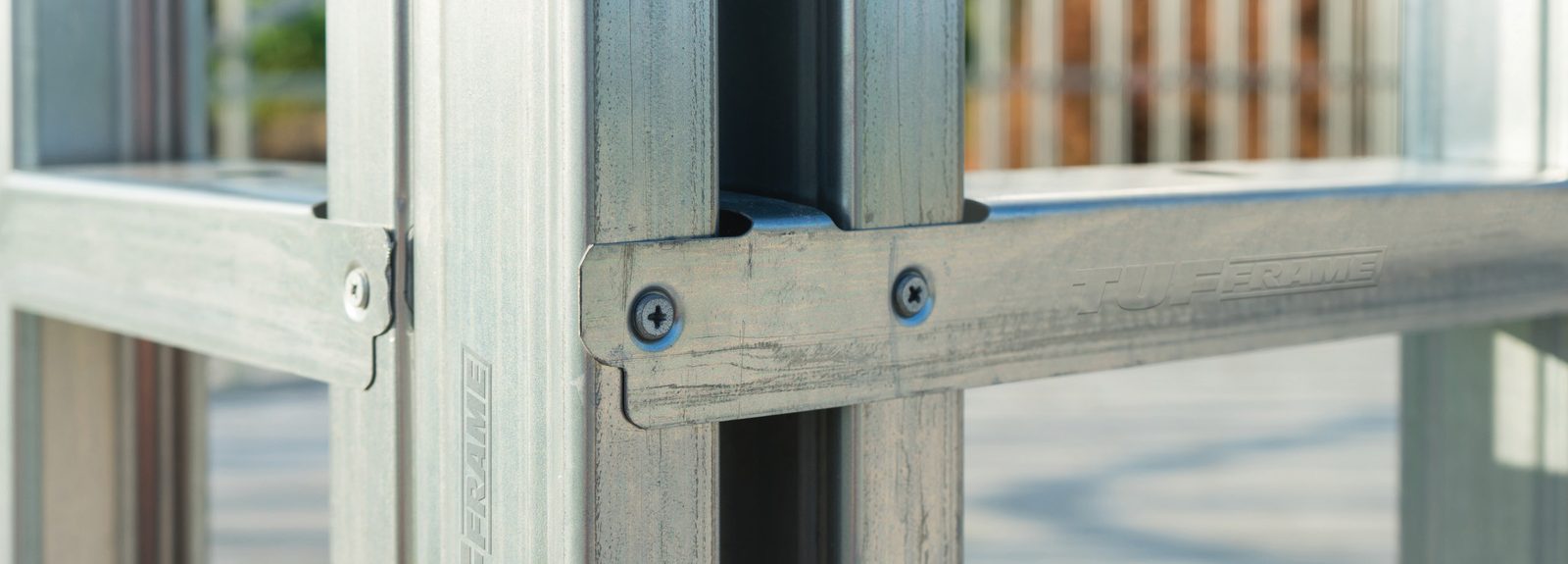

Tufframe steel coils in GIX, Galvalume and Galvanized Plain finishes

Tufframe – Product Specifications

Material Tufframe –GIX Tufframe –Galvalume Tufframe –GP
Size of Tufframe 90 x  45x10mm –
Double-lipped "C"		 90 x 45 x 10 mm –
Double-lipped "C"		 90 x 45 x 10 mm –
Double-lipped "C"
Available thickness 0.6mm to 2mm 0.6mm to 2mm 0.6mm to 2mm
Material GIX Galvalume Galavanized Plain Coil
Material specification 5% of Aluminium and 95% Magnesium Zinc Alloy Steel hot-dipped in Alum/ Zinc coating known as Galvalume with 55% Aluminium, 43.5%Zinc and 1.5% Silicon. Steel hot-dipped in 100% Zinc.
Yield strength 350-550 MPA 350 -550 MPA 350 -550 MPA
GSM Up to ZM300 AZ 150 Z80- 120
Salt Spray Test Hours 12000 Hrs 1000 Hrs 500 Hrs

All profiles are predesigned and pre-engineered as per the specifications.
The profiles are manufactured in our own production plant.
